Minibatching for SparseCore Embedding Lookups

Overview

Minibatching is a feature in the SparseCore embedding library for handling input batches that are too large to be processed by SparseCore in a single pass due to on-chip memory constraints.

The SparseCore hardware has limits on the number of embedding IDs it can process in one operation for a single table partition, constraints dictated by the size of its on-chip memory (SPMEM):

• max_ids_per_partition: The maximum number of embedding IDs.

• max_unique_ids_per_partition: The maximum number of unique embedding IDs.

When an input batch requires more lookups for a given partition than these limits allow, minibatching breaks the batch down into smaller pieces, called minibatches. These minibatches are then processed sequentially on the SparseCore, and their results are accumulated to produce the final output for the original batch.

This mechanism offers several advantages:

• Prevents errors caused by exceeding hardware ID limits.

• Allows users to train with larger logical batch sizes, even if parts of the input data are highly skewed (i.e., some samples require many more embedding ID lookups than others).

• Does not affect model quality, as it is designed to be mathematically equivalent to processing the full batch in a single pass.

Minibatching is particularly useful when the number of embedding IDs that need to be looked up for a single SparseCore core or partition exceeds limits defined by max_ids_per_partition or max_unique_ids_per_partition, which are parameters automatically tuned by Feedback-Directed Optimization (FDO).

Enabling Minibatching

Minibatching can be enabled by setting the enable_minibatching flag to True in various APIs.

Flax Embedding Layer

If you are using the Flax Embedding Layer, you can enable minibatching by passing enable_minibatching=True layer initialization:

from jax_tpu_embedding.sparsecore.lib.flax.linen import embed as flax_embed
from jax_tpu_embedding.sparsecore.lib.nn import embedding

embed_layer = flax_embed.SparseCoreEmbed(
    feature_specs=features,
    enable_minibatching=True,
    mesh=mesh,
)
variables = embed_layer.init(jax.random.PRNGKey(0), ...)

# For multi-host minibatching, create all_reduce_interface
all_reduce_interface = embedding.get_all_reduce_interface(...)

# Preprocess inputs
preprocessed_inputs = embed_layer.preprocess_inputs(
    step, features, features_weights, all_reduce_interface)

# During forward pass
activations = embed_layer.apply(variables, preprocessed_inputs)

# During backward pass
updated_variables = embed_layer.apply_gradient(
    gradients,
    preprocessed_inputs,
)

Low-level API

If using the embedding module directly, pass enable_minibatching=True to preprocess_sparse_dense_matmul_input and tpu_sparse_dense_matmul:

from jax_tpu_embedding.sparsecore.lib.nn import embedding

preprocessed_input, _ = embedding.preprocess_sparse_dense_matmul_input(
    ...,
    enable_minibatching=True,
    all_reduce_interface=all_reduce_interface,
)

activations = embedding.tpu_sparse_dense_matmul(
    preprocessed_input,
    embedding_vars,
    ...,
    enable_minibatching=True,
)

Note that for multi-host minibatching, you need to initialize and pass an all_reduce_interface object to preprocess_sparse_dense_matmul_input. This can be obtained via embedding.get_all_reduce_interface(...).

Performance Considerations

Enabling minibatching introduces some overhead:

• Preprocessing: The bucketization and cross-host synchronization steps add latency to input preprocessing.

• Execution: Executing SparseCore lookups in a loop for multiple minibatches increases TPU execution time compared to a single lookup for the entire batch.

• Communication: In multi-host settings, gRPC-based AllReduce operations introduce communication overhead.

Despite this overhead, minibatching is essential for stability when dealing with large or skewed inputs that would otherwise exceed hardware limits for max_ids_per_partition or max_unique_ids_per_partition. If your model runs without exceeding these limits and does not report ID dropping with minibatching disabled, you might achieve better performance by leaving it disabled. However, if you experience ID dropping or errors due to these limits, enabling minibatching is the recommended solution.

How it works

When minibatching is enabled, the input preprocessing pipeline performs the following steps:

1. Check for minibatching requirement: For each table in the input batch, the preprocessing step checks if the number of embedding IDs or unique embedding IDs destined for any SparseCore partition exceeds the limits (max_ids_per_partition and max_unique_ids_per_partition). If these limits are exceeded for any table, that table is marked as requiring minibatching on the current host.

2. Cross-host synchronization: In a multi-host environment, if at least one host requires minibatching for any table, all hosts must agree to use minibatching for the current step. This is achieved via a cross-host AllReduce operation implemented using gRPC, which aggregates the minibatching requirement status from all hosts. If any host requires minibatching, all hosts will proceed with it.

3. Bucketization: If minibatching is required, all embedding IDs in tables that require minibatching are assigned to one of 64 buckets based on a hash of the embedding ID.

4. Minibatch creation: The 64 buckets are grouped into minibatches. The goal is to create minibatches such that each minibatch fits within the memory constraints of the SparseCore. The division of buckets into minibatches is determined by another AllReduce operation across hosts, ensuring all hosts use the same minibatching strategy for the current step. This division is represented by a bitmask called MinibatchingSplit.

5. Sequential processing: During the embedding lookup (forward pass) and gradient update (backward pass), if minibatching is active (num_minibatches > 1), the SparseCore operation (sparse_dense_matmul) is executed in a loop, once for each minibatch. In the forward pass, embedding lookups are accumulated into the activation tensors based on the feature’s combiner (e.g., ‘sum’). In the backward pass, gradients are computed for each minibatch and applied sequentially to update the embedding tables in-place using the configured optimizer.

Cross-Host Synchronization Flow

As mentioned in steps 2 and 4 above, cross-host synchronization is performed using a gRPC-based AllReduce operation. This is used first to synchronize a boolean minibatching_required flag, and then to synchronize the MinibatchingSplit bitmask across all hosts. Both reductions use a logical OR operation. The synchronization within AllReduce involves two main phases:

1. Local Reduction: Within each host, all participating threads (K) call InitializeOrUpdateState, and their values are combined (OR-ed) into a single host-level value. The last thread to contribute its value is responsible for initiating the global reduction, as at this point, all local contributions are guaranteed to be aggregated into the host-level value.

2. Global Reduction: The locally-reduced values from all hosts (N) are combined via an all-to-all gRPC exchange into a single globally-reduced value, which is then made available to all threads on all hosts.

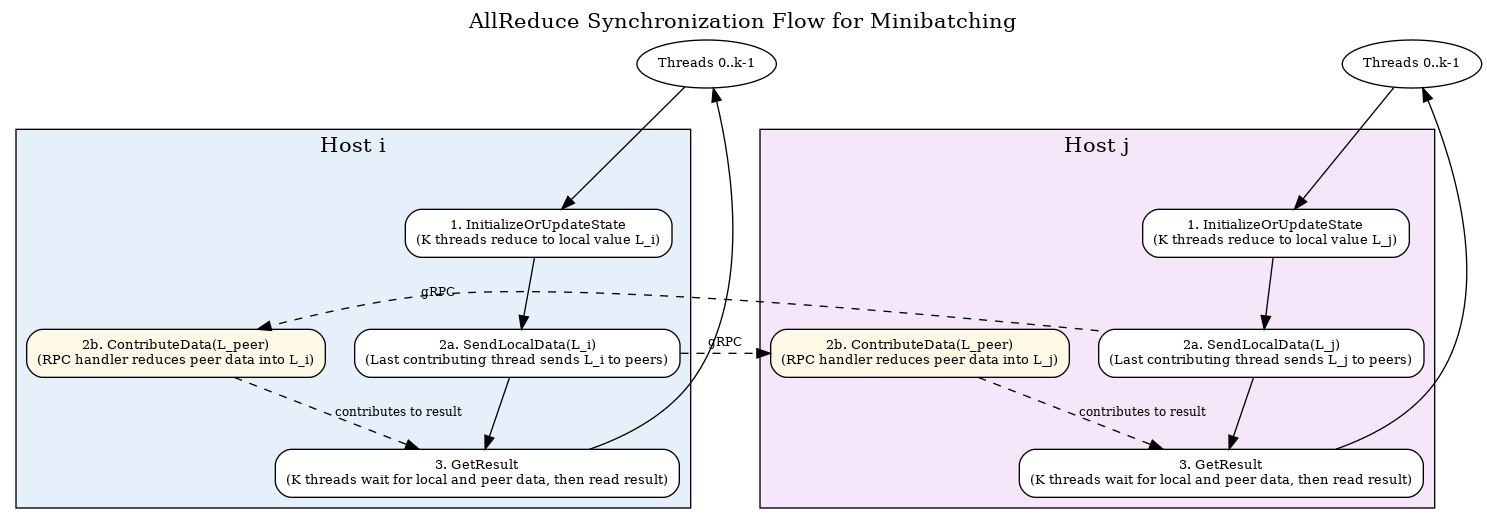

The diagram below illustrates this flow, showing how SendLocalData executes in parallel with the ContributeData RPC handler.

Explanation of Global Reduction Parallelism

Stage 1 InitializeOrUpdateState performs local reduction among K threads, with the last contributing thread (the “last contributing thread”), identified by causing a local_contributions_counter to reach zero, emerging with the host’s locally-reduced value (e.g., L_i for Host i).

Stage 2 is the global reduction, which involves parallel send and receive operations:

• 2a. SendLocalData: The last contributing thread on Host i calls SendLocalData, which sends L_i to Host j (and all other peers) via asynchronous gRPC calls. This function initiates the sends but does not wait for responses.

• 2b. ContributeData: This is an RPC handler running on Host i’s gRPC server. When Host j calls SendLocalData, its RPC arrives at Host i and invokes ContributeData(L_j). This handler incorporates L_j into Host i’s state via an OR-reduction and decrements a counter tracking pending contributions from peers.

• Parallelism: Because SendLocalData sends RPCs asynchronously, and ContributeData is an RPC handler that reacts to incoming RPCs, these two operations occur concurrently. Host i can be sending L_i to Host j at the same time as its ContributeData handler is processing L_k received from Host k.

Synchronization and Result Retrieval:

Stage 3: Synchronization and Result Retrieval: Synchronization occurs when threads call GetResult, which blocks until both of the following conditions are met:

1. All K local threads have completed Stage 1 (local_reduction_countdown).

2. All N-1 peers have sent their data, which is processed by ContributeData on the local gRPC server (global_values_countdown).

Once both local and global reduction are complete, GetResult unblocks and provides the final result to all waiting threads.
